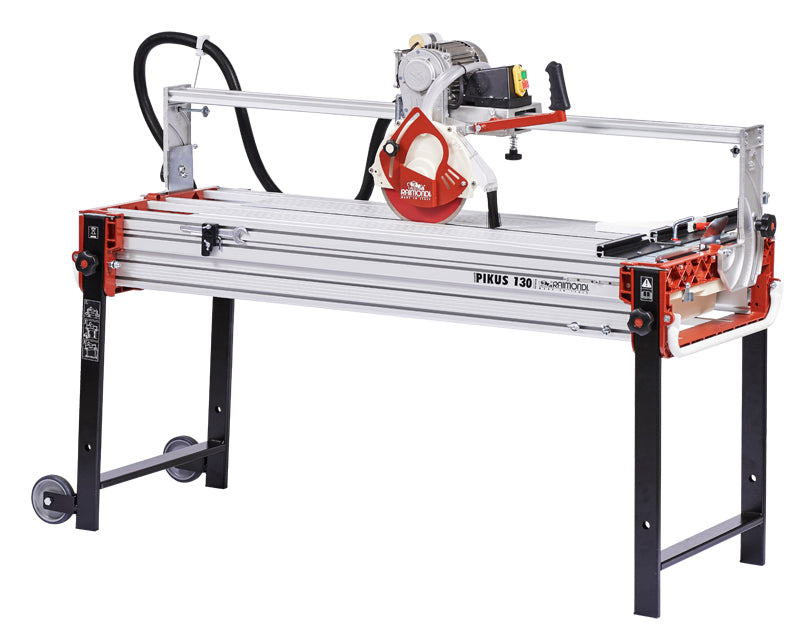

1.5hp motor, able to cut porcelain tiles up to 25mm thickness, with 250 mm diameter diamond disc, it has an overall maximum depth of cut capacity of 80mm. For cutting granite, marble, porcelain, single and double fi red, bricks, cement, etc.

Straight, 45 degrees bevel (Jolly) & plunge cuts.

Maximum length of cut 130 cm.

Maximum thickness of cut: 80 mm.

Maximum blade diameter 250 mm; smallest blade diameter 230 mm.

Adjustable cutting depth.

Tilting motor assembly for bevel cuts from 0 to 45 degrees.

Belt driven system optimizes motor torque and cutting capacity.

Drive belt type poly V.

Cast and extruded aluminium framework.

Easy-to-remove polypropylene tank for easy cleaning. Capacity: 38 ltr.

Heavy duty water pump and (2) jet nozzles (front or rear mounted) provide superior blade cooling.

Sliding motor assembly with cast aluminium housing provided with 4 re-adjustable pulleys (double bearings). Extruded aluminium rail.

Re-adjustable square for long lasting precision.

Telescopic legs provided with safety device to prevent collapsing.

Floating blade guard remains in contact with tile to provide extra safety during operation.

Pivoting blade guard remains parallel with tile to ensure maximum cutting depth.
